Curved Bullet Resistant Vehicle Glass

A quotation request form can be Found at the Bottom of the Page

armored-cars-5

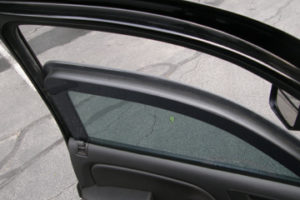

Curved Bullet Resistant Side Door Glass Approx. 2″ thick. Protection from Assault Rifles

Curved Bullet Resistant Vehicle Glass is a glass-clad polycarbonate multi-ply composite laminate combing polycarbonate and glass using special polyurethane high adhesion bonding interlayers which allow the expansion / contraction differential of both materials. Our Protective Glass systems are directly interchangeable with OEM (Original Equipment Manufacturer) parts. Our Curved Bullet Resistant Glass meets standards set by: (ANSI) American National Standards Institute, (SAE) the Society of Automotive Engineers (DOT) Department of Transportation, and (ASTM) American Standard Testing Materials. Ballistic testing provided by: H.P.White Laboratories Inc.
Our Curved Bullet Resistant  Vehicle Glass is only sold as a full  vehicle set. We do offer single replacement  units for existing armored vehicles.
Protection levels from .22 Handguns to Armor Piercing Assault Rifle rounds.Our most common level sold is AUTO-3 ( See chart below)
 Pricing and sales are limited to 2011 to 2018  year vehicles years only! Sorry No Exceptions .

Frequently Asked Questions

Bullet Resistant Glass for Vehicles: Glass -Clad Polycarbonate
Product Thickness Weight NIJ Level CIN Level Stanag Threat
Auto-2 14 MM
9/16″
25.2 Kg/m2
5.3 Lbs. Sq. Ft.
II  BR-3 .9mm,.357 Magnum Handguns and lesser threats.
Auto-3 22 MM
7/8″
46.6 Kg/m2
8.8 Lbs. Sq. Ft.
IIIA BR-4 9mm,.357,.44 Magnum Handguns and lesser threats.
Auto-4 39 MM
1-1/2″
88 Kg/m2
18 Lbs. Sq. Ft.
III BR-6 I 5.56×45 [SS 109], 7.62×39 MSC, 7.62×51 FMJ and lesser threats.
Auto-5 42 MM
1-5/8″
94 Kg/m2
18.5 Lbs. Sq. Ft.
III BR-6 I Multi hit 7.62 x 51 FMJ and lesser threats.
Auto-6 57 MM
2-1/4″
130 Kg/m2
27 Lbs. Sq. Ft.
IV .30-06 AP and lesser threats.
Auto-7 78 MM
3-3/16″
180 Kg/m2
34 Lbs. Sq. Ft.
BR-7 7.62×51 AP and lesser threats.

Please note: specifications and information listed on this page are subject to change without notice. Price quotations and invoices will list current updated specifications and information, if any.


Pricing and sales are limited to 2011 to 2018  year vehicles years only! Sorry No Exceptions . And PLEASE Serious Requests Only!


Ballistic Charts
.

Get a Quote


Some vehicles are not well suited for the installation of our Curved Bullet Resistant Vehicle Glass,
such as small compact cars: Chevrolet Camaro, Corvette, Dodge Viper, Ford Mustang, Pontiac Trans-Am
and any convertible top vehicle and we may not be able to provide a price quotation for all requests.
Vehicles that are well suited for our Vehicle Glass are: Chevrolet Suburban, Toyota Landcruiser,
or other such heavy duty 4 wheel drive vehicles.



Passenger CarSUVPick-Up TruckCargo VanPassenger VanOther


2dr4dr

Auto-2 Protection From: .9mm,.357 Magnum Handguns and lesser threats. Thickness: 4 mm / 9/16" Weight: 25.2 Kg/m2 (5.5 Lbs Sq. Ft.)


Auto-3 Protection From: .9mm,.357, .44 Magnum Handguns and lesser threats. Thickness: 22 mm / 7/8" Weight: 46.6 Kg/m2 (8.8 Lbs Sq. Ft.)


Auto-4 Protection From: 5.56 x 45 SS 109, 7.62 x 39 MSC, 7.62 x 51 FMJ and lesser threats. Thickness: 39 mm / 1-1/2" Weight: 88 Kg/m2 (18 Lbs Sq. Ft.)


Auto-5 Protection From: Multi hit 7.62 x 51 FMJ and lesser threats. Thickness: 42 mm / 1-5/8" Weight: 94 Kg/m2 (18.5 Lbs Sq. Ft.)


Auto-6 Protection From: .30-06 AP and lesser threats. Thickness: 57 mm / 2-1/4" Weight: 130 Kg/m2 (27 Lbs Sq. Ft.)


Auto-7* Protection From: 7.62 x 51 AP lesser threats. Thickness: 78 mm / 3-3/16" Weight: 180 Kg/m2 (34 Lbs Sq. Ft.)

Auto-7 is for protection from .30-06- Armor Piercing Rounds. In addition to submitting this Quotation Request. We also require a phone call with our staff: 513-281-6700


MH: Multi-Hit Situation
AP: Armor Piercing Round
