Spectra Shield Armor Panels

Tactical Entry Vest

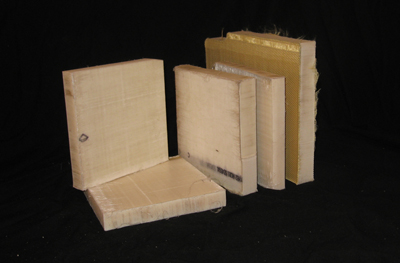

Spectra Shield© 50″x63″ Vehicle Armor Panels are the strongest, lightest, composite ballistic material made today! Spectra Shield isn’t a woven fabric like most ballistic materials, but is rather a thin, flexible ballistic composite made from two layers of unidirectional fibers held in place by flexible resins. These fibers are arranged so they cross each other at 0 and 90 degree angles, then, both fiber and resin layers are sealed between two thin sheets of polyethylene film similar to sarran wrap. Spectra Shield is ten times stronger than steel. We can also provide Spectra Shield Ballistic Panels in other sizes, please contact us for more information. Ballistic Protection up to NIJ Level III+.

Spectra Shield is very lightweight and waterproof. Some ideal armor applications include vehicle armoring, helicopters, aircraft, and marine use such as boats, ships, border patrol and homeland security vessels. We can custom fabricate and cut our Spectra Shield Panels to your exact specifications. We have state of the art water capabilities, send use your CAD files and we will do the rest. We can custom manufacture Spectra Shield Armor Panel kits for boats, ships, vehicles or other such applications. The cut panels can be shipped to your location ready for easy installation. Call us today for more information at 513-281-6700.

Spectra Shield composite armor panels can be glued in place, or installed with screws, nuts and bolts, etc. Our Spectra Shield armor panels were tested behind .040 aluminum panels, go to next higher level of protection for stand alone applications.

Please note: specifications and information listed on this page are subject to change without notice. Price quotations and invoices will list current updated specifications and information, if any.

Spectra Shield Armor Panels
63″x 50″
Threat Level of Protection Thickness Lbs. per Sq. Ft.
.9mm,, .357 Magnum Handguns
and lesser threats
N.I.J. II
CEN B-2
5/32″ 0.8 Lbs.
.9mm, .357,& ,.44 Magnum Handguns and lesser threats
N.I.J. IIIA
CEN B-4
7/32″
1.0 Lbs.
.5.56mm 55 gr., 30 cal 180 gr.,308 NATO 150 gr. FMJ and lesser threats
N.I.J. III
CEN B-6
.650″
3.3 Lbs.
AK-47 7.62×39 sc M1943 MSC
and lesser threats
N.I.J. III+ .95″ 3.9 Lbs.
5.56 M855 and lesser threats N.I.J. III+ 1-1/2″ 6.00 Lbs

Ballistic Charts.
