CRF Run Flat Tire Inserts Installation

    A quotation request form can be Found at the Bottom of the Page

    CRF Run Flat Tire Insert installation process

    #1 Inspect wheel before installing… clean wheel and install metal valve supplied with your order.

    #2 Ensure that the Hutchinson Run Flat Tire Insert will properly fit your wheel! Position Hutchinson Run Flat Tire Insert arcs against wheel and confirm they are properly mated. Install bolts to ensure Hutchinson Run Flat Tire Insert  is secure to wheel drop center; continue to tighten bolts until joint faces are together. For additional tightness, rotate one or both washers 180 degrees as needed.

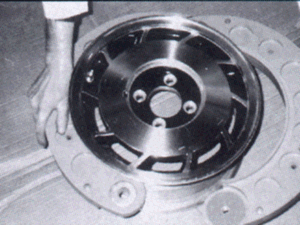

    CRF Run Flat Tire Insert installation process,run flat being fitted on wheel

    #3 Insert the two “arcs” into tire with flanges and washers facing up. Apply Locktite to bolt threads. Connect “arcs” loosely with one bolt, as shown in photo below.

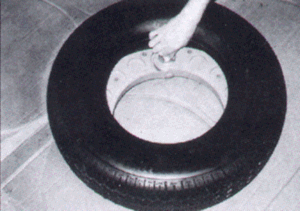

    CRF Run Flat Tire Insert installation process,run flat being fitted inside tire

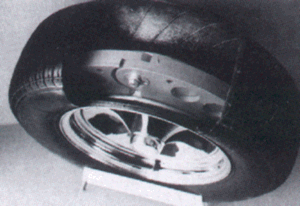

    The Hutchinson Run Flat Tire Insert is NOT a run flat tire like Goodyear and Firestone’s run flat tires, but a tire rim insert that is custom manufactured to fit your vehicle tire rim. Manufactured from a lightweight space age ballistic composite and balanced during manufacture, it will not create any tire-wheel imbalances. Use your existing tires and rims!

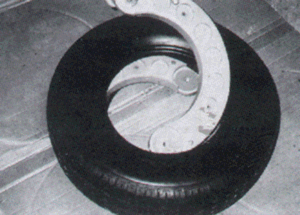

    CRF Run Flat Tire Insert installation process,run flat being fitted inside tire

    #4 Fit inboard tire bead and Hutchinson Run Flat Tire Insert on your wheel and allow Hutchinson Run Flat Tire Insert  to move into the wheel’s drop center.

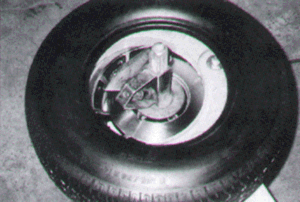

    CRF Run Flat Tire Insert installation process, run flat being fitted on tire machine

    #5 With outboard tire bead on outside of wheel flange, place steel mounting rods (mounting kit provided with your order) in the 1/2″ holes provided on each side of the Hutchinson Run Flat Tire Insert. Slip adjustment band over mounting rods.  Laterally spread rods at top, closing the Hutchinson Run Flat Tire Insert  Install the remaining bolt, apply Locktite to bolt threads and tighten all bolts and torque to 50 ft. lbs. Installation takes about 20 minutes per wheel.

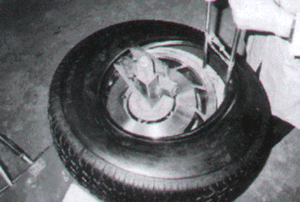

    CRF Run Flat Tire Insert installation process, run flat being fitted on tire machine for final installation

    #6  Secure mechanical lock over all connection bolts.  Attach with Phillip’s head screws provided.  Mount outboard tire bead and inflate tire to manufacturer’s recommended pressure for load carried.  Re-balance finished assembly, and you’re done!

    Fits standard rim sizes: 13″ 14″ 15″ 16″ 17″ 17.5″ 18″ 19.5″ 22.5″

    For Family Cars, Trucks, Vans, Police, Fire, Safety Vehicles

    Please note: specifications and information listed on this page are subject to change without notice.
